Stainless steel and super-wood deep drawing press.
Front protection - PHOTOELECTRIC BARRIER
Rear protection - FIXED SCREWED HOUSINGS
Right side protection - CLOSED SIDE
Left side protection - CLOSED SIDE
Lower floor - machining / slots for T nuts on customer request
Movable table - machining / slots for T nuts at the customer's request
Installed power 30 KW
Thrust force of main cylinder 300 Tons
Pushing force for sheet metal pressing cylinder 30 Tons
Operator side horizontal light 1340 mm
Vertical light 800 mm
Main cylinder stroke 700 mm
Stroke cylinder press sheet 300 mm
Height of the worktop from the ground 1200 mm
Lower worktop size 1200x800 mm
Mobile worktop size 1200x800 mm
Dimension of the worktop press plate 860x500 mm
Fast descent speed 100 mm / sec
Working speed 3 mm / sec
Fast ascent speed 100 mm / sec.

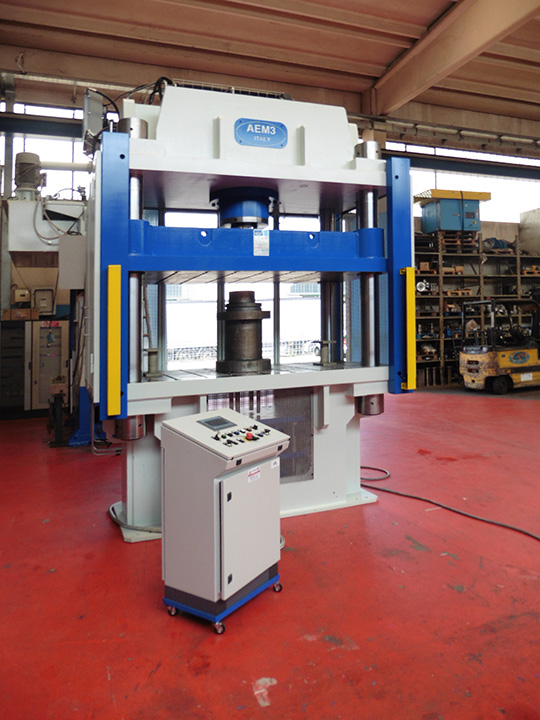

DEEP DRAWING PRESSES.
PRESS "A"
- THRUST FORCE MAIN CYLINDER 120 Tonn.
- STRENGTH OF MAIN CYLINDER TRACTION 20 Tonn.
- THRUST FORCE OF THE BLANK HOLDER CYLINDER 60 Tonn.
- HORIZONTAL LIGHT ON THE OPERATOR SIDE 845/1020 mm. mm.
- VERTICAL LIGHT 1200 mm.
- MAIN CYLINDER STROKE 950 mm.
- STROKE CYLINDER STROKE 400 mm.
- HEIGHT OF THE WORKTOP FROM THE GROUND 1510/1570 mm.
- DIMENSION OF THE LOWER WORK PLANE 800X800 mm. / 1000X1000 mm.
- SIZE OF THE MOBILE WORKTABLE 800X800 mm. / 1000X1000 mm.
- SIZE OF THE BLANK SHEET WORK PLAN 550X550 mm. / 600X600 mm.
- FAST DESCENT SPEED 500 mm./sec.
- WORKING SPEED 36/70 mm./sec.
- FAST ASCENT SPEED 500 mm./sec.
- CYLINDER EXTRACTOR IN THE MIDDLE OF THE MOBILE POWER PLANE 10 Tonn. STROKE 300 mm.
PRESS "B"
- THRUST FORCE MAIN CYLINDER 200 Tonn.
- STRENGTH OF MAIN CYLINDER TRACTION 25 Tonn.
- THRUST FORCE OF THE BLANK HOLDER CYLINDER 100 Tonn.
- HORIZONTAL LIGHT ON THE OPERATOR SIDE 920/1020 mm.
- VERTICAL LIGHT 1100 mm.
- MAIN CYLINDER STROKE 700 mm.
- STROKE CYLINDER STROKE 300 mm.
- HEIGHT OF THE WORKTOP FROM THE GROUND 1400 mm.
- DIMENSION OF THE LOWER WORK PLANE 900X900 mm. / 1000X1000 mm.
- SIZE OF THE MOBILE WORKTABLE 900X900 mm. / 1000X1000 mm.
- SIZE OF THE BLANK SHEET WORK PLAN 600X600 mm. / 600X600 mm.
- FAST DESCENT SPEED 500 mm./sec.
- WORKING SPEED 27/63 mm./sec.
- FAST ASCENT SPEED 500 mm./sec.
- CYLINDER EXTRACTOR IN THE MIDDLE OF THE MOBILE POWER PLANE 3 Tonn. STROKE 200 mm.
PRESSES SUITABLE FOR THE PRODUCTION OF STAINLESS STEEL DRUMS.
PRESS DELIVERED IN 4 MONTHS FROM THE ORDER CONSIDERING AUGUST AND DECEMBER. PRESS SUITABLE FOR ALUMINUM SHEETS DRAWING FOR AUTOMOTIVE / AEROSPACE SECTOR.
- CLOSED SHOULDER PRESS WITH PRISMATIC GUIDES
- PRESS 300TON
- OPERATOR SIDE LIGHT 1200MM
- DEPTH OF THE WORKING SURFACE 600MM
- LUE AMONG THE OPEN PLANS 800MM
- PISTON STROKE 700MM
- DESCENT SPEED 200MM / SEC
- WORKING SPEED 10MM / SEC
- COMPLETE WITH 70TON STICKER STROKE 250MM AND COMPLETE WITH N ° 36 CANDLES DIAM. 25 PITCHES WITH PITCH 100X100MM
- COMPLETE WITH 15TON 200MM STROKE HYDRAULIC EXTRACTOR PLACED IN THE MOBILE PLAN
- CONTROL OF THE SELF-LEARNING ELECTRO-DISTRIBUTOR PRESS WITH PLC "TELEMECANIQUE" AND TOUCH SCREEN BRAND "PRO-FACE"
- COMPLETE WITH N ° 05 PRESSURE STEPS FOR THE POSSIBLE ADJUSTMENT OF THE DEEP PRESSURE / ALTITUDE
- HYDRAULIC SYSTEM BRAND DENISON / PARKER
- COMPLETE WITH OPTICAL BARRIERS ON THE OPERATOR SIDE AND FIASSA PROTECTION ON THE NET ON THE REMAINING PRESS SIDES
- ELECTRONIC DISTRIBUTOR CONTROL WITH TWO-HAND PUSH-BUTTON CONTROL
COMPANY THAT WORKS IN THE SECTOR OF DRAWING SHEET MOLDING.
- MAIN PISTON PRESS 100TON
- LIGHT BETWEEN THE COLUMNS 810x810mm
- LIGHT BETWEEN THE OPEN PLANS 800mm
- STROKE OF THE PISTON 6000mm
- DESCENT / ASCENT SPEED 100mm / sec
- ADJUSTABLE WORKING SPEED ACCORDING TO THE EFFORT THAT FIND FROM 35 - 10mm / sec
- COMPLETE WITH BLANK HOLDER: POWER 35TON - STROKE 250mm
- PARKER / DENISON BRAND HYDRAULIC SYSTEM
- ELECTRICAL SYSTEM BRAND SIEMENS / PROFACE
- COMPLETE WITH 03 PRESSURE STEPS TO ADJUST THE PRESSURE DOWN / ASCENT FOR THE BLANK
- COMPLETE ALSO WITH A THIRD MECHANICAL EFFECT ADJUSTABLE BY SCREWS PLACED IN THE MOBILE PRESS TOP
- COMPLETE WITH OPTICAL BARRIERS ON THE OPERATOR SIDE, WITH FIXED REAR PROTECTION AND WITH OPENABLE HOUSINGS WITH LIMIT SWITCHES ON THE SIDE SIDES OF THE PRESS
SYSTEM FORMING PIPES HOT.
- POWER 1500 ton.
- SPAN 2500x600x2600 mm.
- COLUMN DIAM. 400 mm.
- STROKE 1800 mm.
- SPEED DOWN / UP 100 mm/sec
- SPEED WORK 15 mm/sec.
- POWER INSTALLATION 200 kW
- COMPLETE WITH 250 ton. LOWER BLANK HOLDER STROKE 2300 mm.
- COMPLETE WITH EXTERNALLY SLIDING BOLSTER TO CHANGE MOULDS TO 830X1350X110 mm.
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES LEVEL IVPROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES WITH BIMANUAL PUSH-BUTTON CONTROL PANEL.
HYDRAULIC PRESS PLATE.
- “4 COLUMN” PRESS - POWER 400 ton.
- SPAN 1000x1000x900 mm.
- STROKE 700 mm.
- SPEED 200/7-15/200 mm/sec
- ELECTRONIC WORKING SPEED REGULATION COMPLETE WITH 200 ton BLANK HOLDER STROKE 400 mm.
- WITH 32 HOLES FOR 40 DIAMETER ELECTRODES
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES - LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- BIMANUAL PUSH-BUTTON CONTROL PANEL.
FORM PRESS FOR LABORATORIES, PRESS FOR BUTTONS.
- “4 COLUMN” PRESS - POWER 200 ton.
- SPAN 600x600x700 mm.
- STROKE 500 mm.
- SPEED 200/2-10/200 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION
- COMPLETE WITH 50 ton BLANK HOLDER STROKE 200 mm. AND WITH 12 HOLES FOR 40 mm. DIAMETER ELECTRODES BLANK HOLDER WITH A POSSIBLE EXTRACTOR INCLUDED AND BLANK HOLDER
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES BIMANUAL PUSH-BUTTON CONTROL PANEL.
PRESS USED TO MANUFACTURE SINKS, PRESS FOR CERAMICS.
- “4 COLUMN” PRESS - POWER 250 ton.
- SPAN 1200x1000x1000 mm.
- STROKE 800 mm.
- SPEED 350/80/37-8.5/350 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION COMPLETE WITH 130 ton BLANK HOLDER STROKE 400 mm. AND 12 HOLES FOR 40 mm. DIAMETER ELECTRODES
- BLANK HOLDER’S UPSTROKE 72 mm/sec.
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES
- LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- BIMANUAL PUSH-BUTTON CONTROL PANEL.
PRESS FOR METAL CONTAINERS.
- LAMIERE/PLATE/SHEET MOULDING PRESS
- “4 COLUMN” PRESS
- POWER 100 ton
- SPAN 1200x1000x1100 mm.
- STROKE 600 mm.
- SPEED 250/15-2/250 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION
- COMPLETE WITH 60 ton BLANK HOLDER STROKE 250 mm. AND WITH 16 HOLES FOR 40 mm. DIAMETER ELECTRODES
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES
- LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- BIMANUAL PUSH-BUTTON CONTROL PANEL.
BLANKING PRESS.
- “4 COLUMN” PRESS - POWER 120 ton
- SPAN 500x500x750 mm.
- STROKE 550 mm.
- SPEED 80/30-15/80 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION
- COMPLETE WITH 10 ton BLANK HOLDER STROKE 150 mm. AND WITH 16 HOLES FOR 30 mm. DIAMETER ELECTRODES
- COMPLETE WITH 5 ton EXTRACTOR STROKE 100 mm.
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES
- LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- COMPLETE WITH EXTRA OUTPUTS TO CONNECT WORKING EQUIPMENT - BIMANUAL PUSH-BUTTON CONTROL PANEL.
PRESS FOR PLASTIC CONTAINERS.
- PRESS FOR APPLICATIONS AND REMOVALS
- POWER 90 ton
- SPAN 900x600x900 mm.
- STROKE 550 mm.
- SPEED 350/60-40-30-20/350 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION
COMPLETE WITH 45 ton BLANK HOLDER STROKE 250 mm. AND WITH 16 HOLES FOR 30 mm. DIAMETER ELECTRODES AND WITH 3 MANUALLY ADJUSTABLE PRESSURE STAGES
- COMPLETE WITH 30 ton EXTRACTOR STROKE 100 mm.
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES
- LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- BIMANUAL PUSH-BUTTON CONTROL PANEL.
PRESS FOR DASHBOARDS.
- “4 COLUMN” PRESS
- PRESS EQUIPPED WITH TWO PISTONS WITH 120 ton. OVERALL POWER
- SPAN 2000x1800x1200 mm.
- STROKE 1000 mm.
- SPEED 200/5-10/200 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION - SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES - LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
WITH BIMANUAL PUSH-BUTTON CONTROL PANEL PLASTIC MOULDING PRESS.
“PILLAR” PRESS.
- PRESS EQUIPPED WITH TWO PISTONS WITH AN OVERALL POWER OF 500 ton - SPAN 2000x1500x1200 mm.
- STROKE 1000 mm.
- SPEED 200/5-10/200 mm/sec.
- ELECTRONIC WORKING SPEED REGULATION COMPLETE WITH 200 ton BLANK HOLDER STROKE 250 mm. AND WITH 50 HOLES FOR 40 mm. DIAMETER ELECTRODES AND WITH 3 MANUALLY ADJUSTABLE PRESSURE STAGES
- SELF-LEARNING EQUIPMENT WITH DATA STORAGE AND OTHER ACCESSORIES
- LEVEL IV PROTECTION BARRIERS ON THE OPERATOR’S SIDE AND FIXED WIRE MESH PROTECTION ON THE REMAINING PRESS’S SIDES
- BIMANUAL PUSH-BUTTON CONTROL PANEL.
